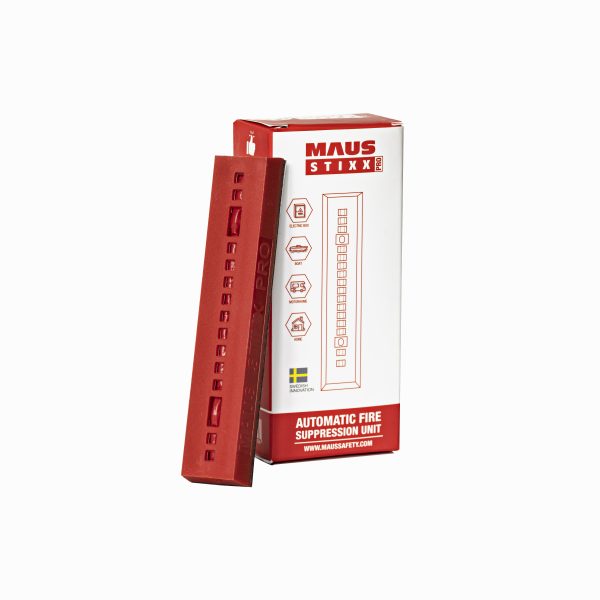

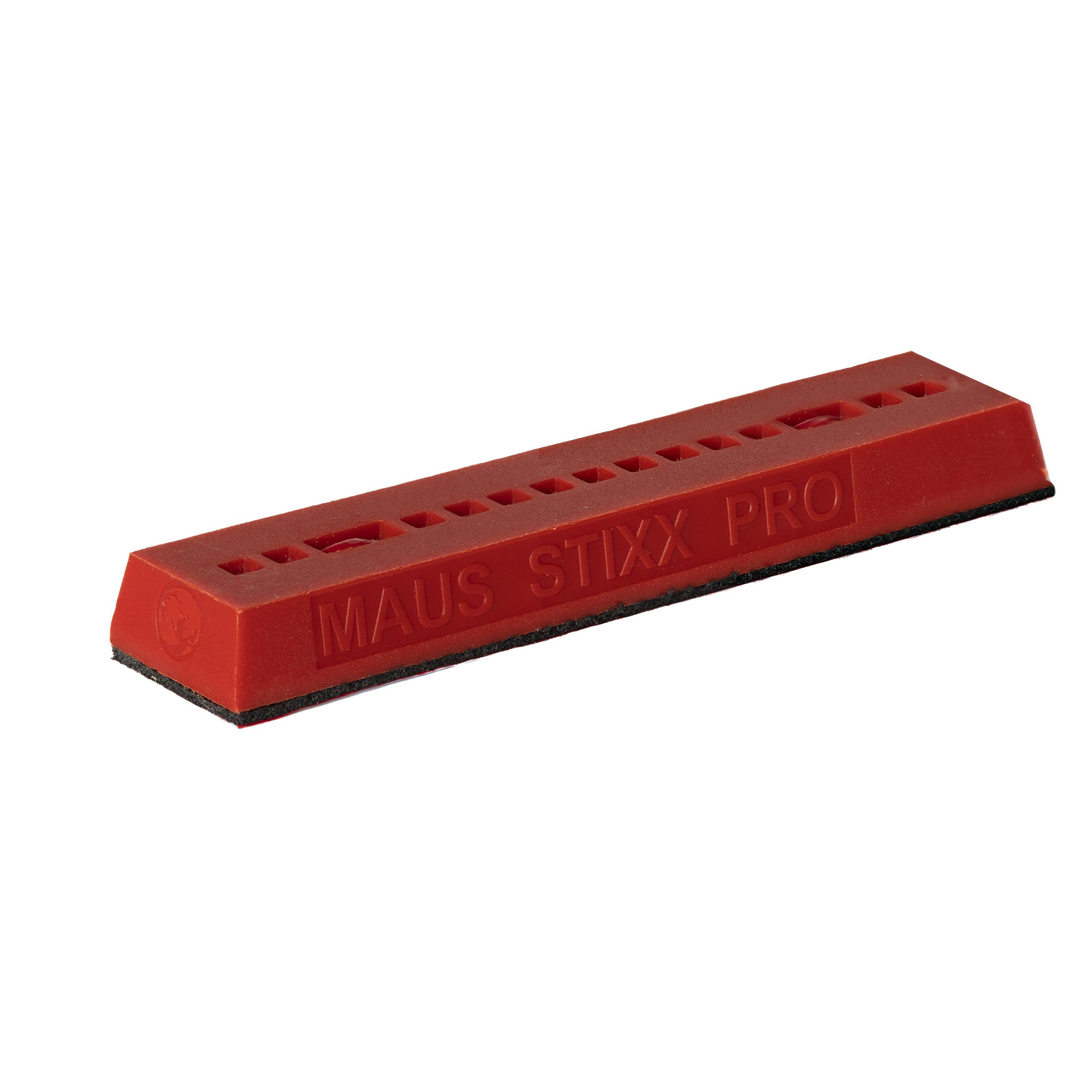

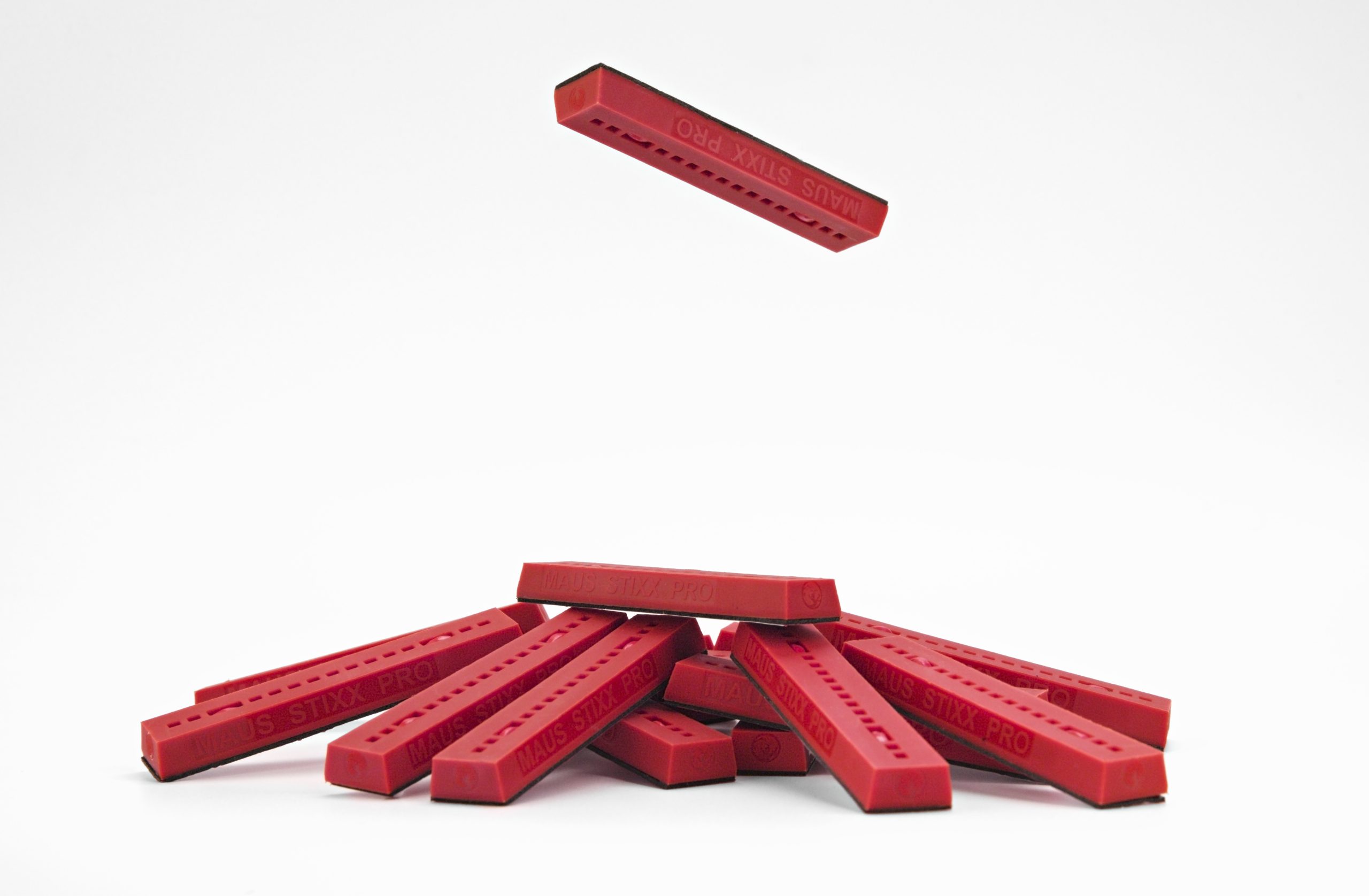

Stixx DIY (Do It Yourself) for micro spaces up to 3.53ft³
With the STIXX DIY, automatic fire protection is installed in the simplest way and can protect you and fellow humans from fires in enclosed spaces, as well as protect property from devastating damage. STIXX DIY is the simple fire protection in all small, closed enclosures such as electrical distribution boxes, and battery compartments.
Highlights
- Automated Fire Suppression with a coverage of 3.53ft³
- Automated Fire Suppression activation at 170°C
- Do IT Yourself Automated Fire Suppression
Why Choose Your Regional Distributor or Certified Installers?
– Cost-Effective: Purchasing from a regional distributor is generally cheaper than buying from a global retailer, especially when shipping to an export freight forwarder address.
– Transparent Pricing: Our streamlined import pricing allows you to compare US freight forwarder costs and total landed costs at a glance, simplifying your purchasing decision.
– Flexible Shipping Options: Enjoy convenient choices ranging from in-store pickups to free bulk and container deliveries within the capital, with reduced shipping rates for deliveries to outer islands.
– Product Registration Support: We assist you in registering your product, ensuring that manufacturer warranties are activated through your designated local distributor while allowing you to receive email coupons.
– First to Register a Tender: Enjoy preferential pricing on that tender without having to compete with the distributor.
Compare Online Price inclusive of US Shipping and Taxes equating to $74.99 to the below landed price before VAT
BSD $99.99
The technology behind the STIXX DIY
Firefighting technology developed for space travel
The solid consists mainly of a form of potassium compound. Potassium radicals are very active and interrupt the chemical combustion reactions by neutralizing hydrogen, oxygen and hydroxide radicals in the flame. As aerosols consist of precisely very small particles in a gas, the result is a more effective extinguishing agent than conventional powder. The falling speed of the particles decreases with a smaller diameter as the surface becomes large in relation to the mass, which means that air resistance becomes relatively large in relation to the force of gravity. This results in the particles remaining suspended for a longer time and thus contributes to a longer inerting time. In this way, you get better protection against re-ignition. The extinguishing effect per unit of weight is in the range 3-10 times more effective than Halon and CO2.
Detailed features
| Height | 0.39 in |
| Width | 0.70 in |
| Weight | 0.07 lbs |
| Length | 3.85 in |
| Extinguishing agent | Patented potassium smoke |
| Coverage (enclosed space) | 0.1m³ (e.g. 40in high, 20in wide and 8in deep) |
| Installation temperature range | -22°F, + 158°C |
| Activating temperature | 356°F |
| Life span | 5 years |
| Certificates | CE, BAM |
How to install STIXX DIY
- Turn off power to any unit or enclosure you will be protecting
- Find an optimal place, the STIXX DIY should always be placed on a clean flat surface at the top of the enclosed area. In addition, a distance of .75 in to 1.2 in between the STIXX DIY and any object is required.
- Clean the surface where the STIXX DIY is attached if necessary.
- Remove the red adhesive protective film from the STIXX DIY and place the STIXX DIY in the desired location with gentle pressure.
- Write down the expiry date on the included sticker so you always know how long you are protected.
- Close the enclosure and turn the power back on as necessary.
Video
Frequently asked questions about STIXX DIY
Here you will find the answers to the most common questions about STIXX DIY. Can’t find what you’re looking for? Do not hesitate to contact us
A STIXX DIY protects an area of 0.1 m³.
If the volume of the area to be protected is larger, the protection area can be extended with additional STIXX DIY.
The harmless, non-toxic mouse aerosol smoke encapsulates combustible particles In the smallest form, the smoke and prevents re-ignition.
As a result, the fire will go out completely without endangering your or other people’s health.
The developed extinguishing agent produces pyrotechnic aerosols, which have the ability to stop the free radicals in the fire.
The assembly of the STIXX DIY is very simple.
It is advantageous to clean the place where the STIXX DIY is to be attached, so that any dirt does not reduce the adhesive strength of the tape.
Then remove the protective film on the STIXX DIY and press it in place.
Inside the STIXX DIY is the heat detection cable.
As soon as a heat of 356°F is reached, the STIXX DIY is released automatically.
Absolutely, it’s the same principle as with a more modern electrical cabinet.
